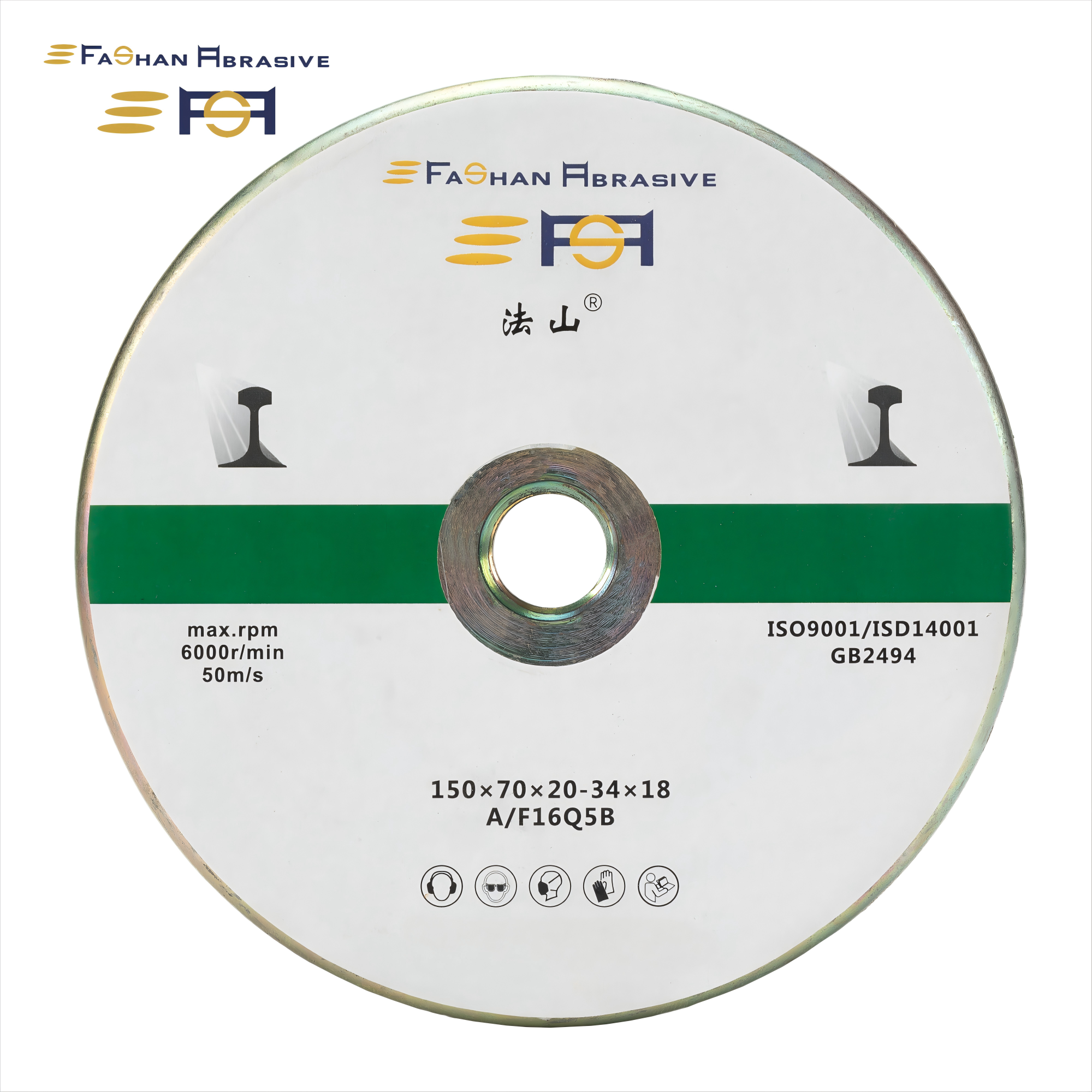

Fashan Rail Grinding Wheel 150×70×20-34×18

Hand Operated Machines wheels

Fashan Rail Grinding Wheel 150×70×20-34×18

With 20 years of research and testing, we ensure the quality of our products. A wealth of trial experience guarantees the advantages of our products. Our steel rail grinding wheels are made from zirconia and resin powder as raw materials, with the use of zirconia significantly enhancing the wear and cutting performance. We strictly control the mixing, hot pressing, and balance testing processes, and further stabilize the product quality through the addition of glass fiber winding, secondary curing, rotary testing, and oven treatment.

  • Brand Fashan
  • Country of Origin China
  • Specifications and Model 150×70×20-34×18-ZAF16Q5B-50ms
  • Gross Weight 3.04 kg
  • Packing Dimensions 150*150*80 mm
  • Compatible With Geismar/Robel
Our grinding wheels are crafted with a legacy of precision, designed in concert with the vertical grinding machines such as Robel and Geismar, which are the backbone of the railway industry for the detailed refinement of components including steel rails, switch rails, frog noses, wing rails, and switch points. With a formulation that harmonizes zirconia, resin powder, and composite materials, our wheels are a testament to our ability to swiftly remedy rail imperfections, showcasing the superior cutting performance of zirconia over traditional brown corundum.

The excellence of our grinding wheels is not just a promise but a product of a stringent production process that is a reflection of our dedication to surpassing standards. Celebrated for their robust cutting capacity and resilience, these wheels are pivotal for the seamless finishing of weld seams on steel rails, the eradication of the fish-scale pattern on switches, and the clearance of obstructions on the rail surface. We meticulously adjust our formulations and dimensions to meet the bespoke needs of a variety of rail grinding machinery, ensuring unparalleled performance across a spectrum of applications.
    • Our wheels undergo a ritual of production that includes heat pressing for compact strength, glass fiber wrapping for structural integrity, and secondary tempering for a balance of hardness and endurance. Each wheel is subjected to a rigorous series of tests, including rotational testing for high-speed durability and balance testing to mitigate vibrations during operation. The final phase of curing in a controlled oven environment solidifies the wheels' hardness and ensures structural steadfastness.
fashan rail grinding wheel 150×70×20-34×18 (2)2k1

Optimized Formulation with Zirconia and Resin Powder: Crafted from a blend of high-quality zirconia and resin powder, our grinding wheels offer an exceptional combination of durability and cutting performance. The zirconia content is carefully selected for its hardness and wear resistance, ensuring the wheels maintain their sharpness over time. The resin powder, on the other hand, is strategically used to regulate the hardness of the wheels, allowing for a balance between aggressive material removal and the preservation of rail surface integrity.

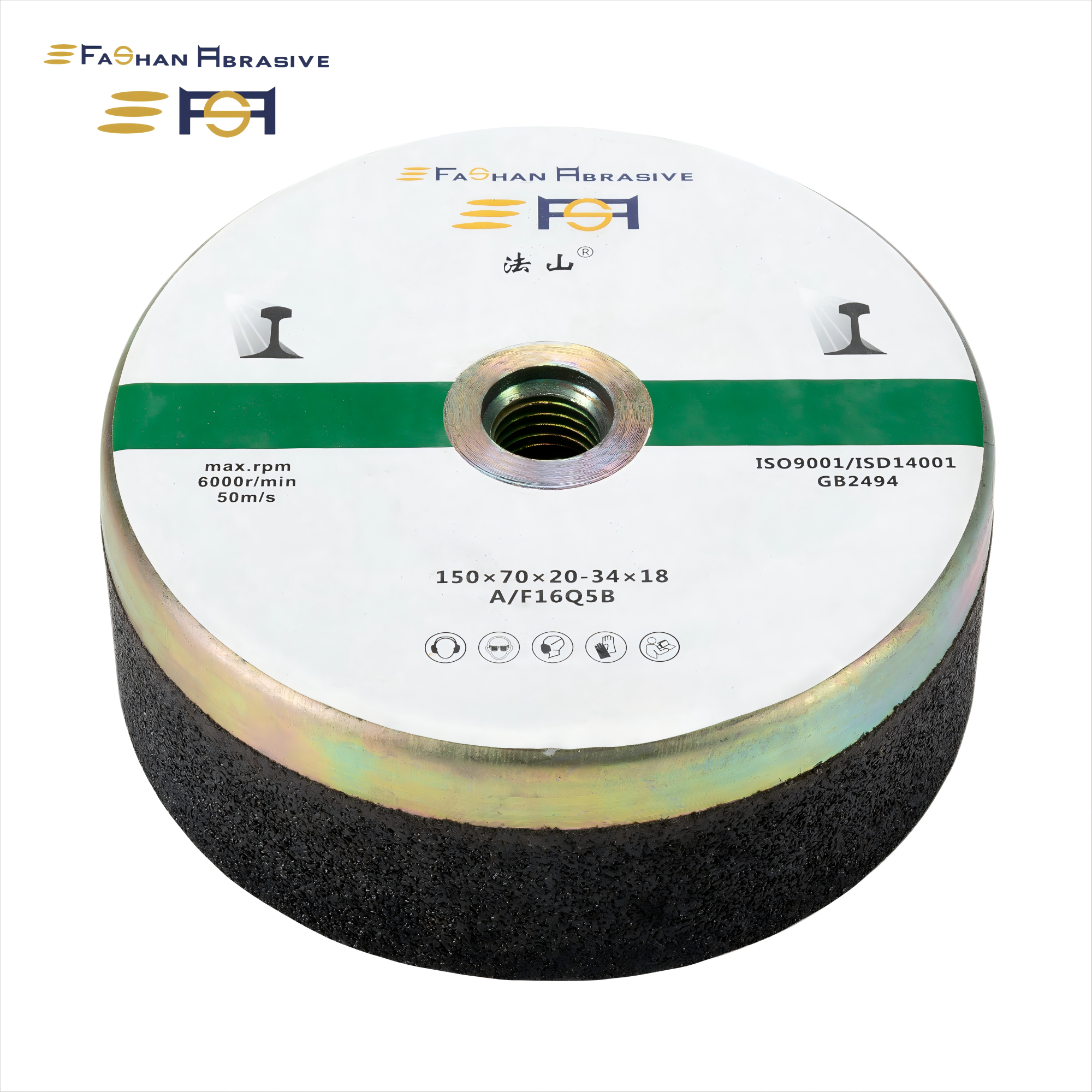

fashan rail grinding wheel 150×70×20-34×18 (1)icq

Embedded in our narrative is the rich tapestry of our development story. When we embarked on the journey to create these wheels, we sought the wisdom of esteemed professors from numerous universities, whose scholarly insights were instrumental in our innovation. The path was not without its challenges, but each obstacle was met with resolve and ingenuity, leading to breakthroughs that have set our grinding wheels apart.

    • Let us illustrate this with a story: In the early days of our research and development, we faced a labyrinth of complexities. Yet, with the guidance of academic luminaries and our team's indomitable spirit, we navigated through and emerged with a design that was not just functional but exceptional. One of our proudest moments was when, in the midst of a particularly arduous trial, a seasoned railway worker, who had seen tools come and go, remarked, "This isn't just a tool; it's a revolution." Our wheels had transformed what was expected into a triumph of engineering, a revolution on the rails.
      This tale is more than a chronicle of innovation; it is the living legacy of our founder, a former railway worker, and the generations who have contributed to the railway's evolution. It is a saga of perseverance, where every challenge was an opportunity, and every solution a step forward in our commitment to serve the railway industry with unwavering excellence.
      Our grinding wheels are not merely the output of a production line; they are the progeny of a vision fueled by expertise and enriched by the collective endeavor of those who believe in the relentless pursuit of progress. They are a tribute to the generations of railway workers and a beacon for those who continue to write the industry's future.

Steel Rail Grinding Wheel Manufacturing Process Flowchart

Fashan Rail Cutting Wheel 400×4×32-Af30r8bf-80msaxbFashan Rail Cutting Wheel 400×4×32-Af30r8bf-80msb4w

Schematic diagram of rail grinding tester

Fashan Rail Grinding Wheel 150×70×20-34×1 (1)hzsFashan Rail Grinding Wheel 150×70×20-34×1 (sbo

Post-Grinding Grinding Wheel End Face Effect

Fashan Rail Grinding Wheel 150×70×20-34×1 ( (3)qla

The Effect of the Steel Rail Surface After Grinding Construction

Fashan Rail Grinding Wheel 150×70×20-34×1 ( (4)596Fashan Rail Grinding Wheel 150×70×20-34×1 ( (5)l7fFashan Rail Grinding Wheel 150×70×20-34×1 ( (6)16c

Your Partner in Grinding Excellence: Join us in our journey of innovation and quality. Experience the difference that 20 years of expertise and dedication can make in your grinding projects.
